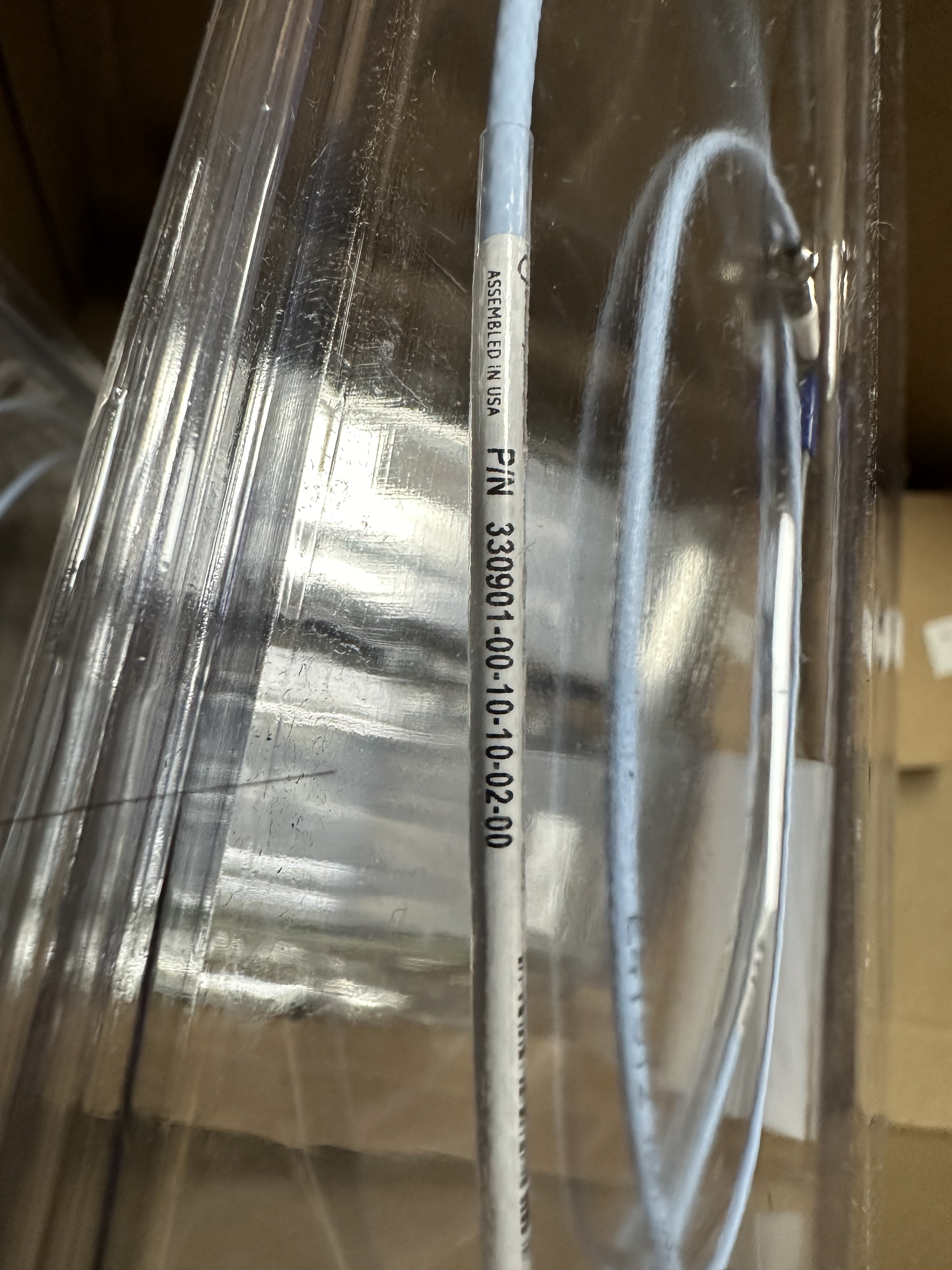

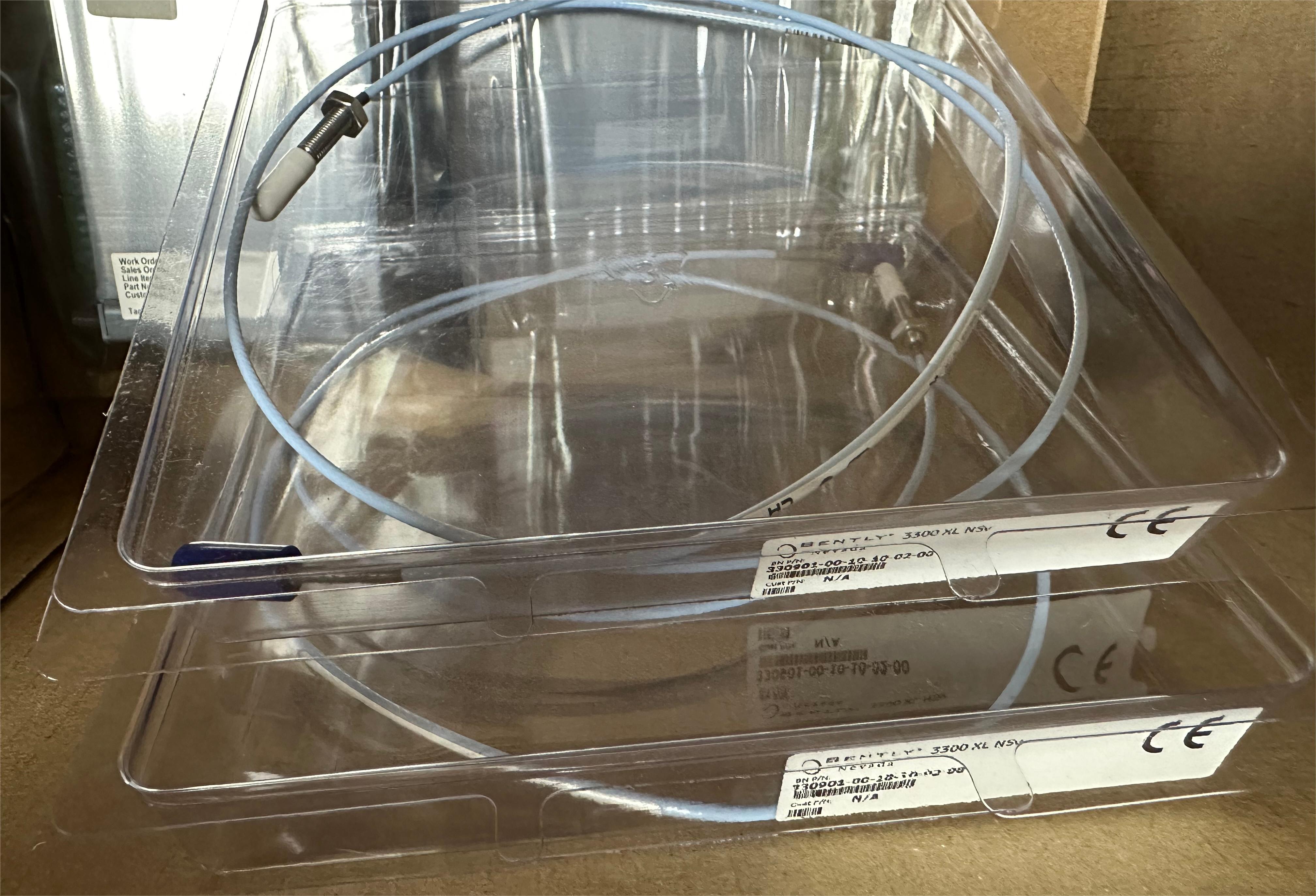

Bently Nevada 3300 NSv Proximity Probe 330901 330905

Name: Bently Nevada 3300 NSv Proximity Probe 330901 330905
Brand: Bently Nevada
Price: 1 USD

Buy cheap Bently Nevada 3300 NSv Proximity Probe 330901 330905 product

Brand Name : Bently Nevada

Model Number : 330901-00-12-10-02-CN/330905-02-12-05-02-00

Certification : ATEX/IECEx

Place of Origin : USA

MOQ : 1pc

Price : negotiable

Supply Ability : 100pcs per month

Delivery Time : on request

Packaging Details : standard carton packing

Input : Accepts one non-contacting 3300 RAM or 3300 NSv Proximity Probe and Extension Cable.

Power : Requires -17.5 Vdc to -26 Vdc without barriers at 12 mA maximum consumption, -23 Vdc to -26 Vdc with barriers. Operation at a more positive voltage than -23.5 Vdc can result in reduced linear range.

Supply Sensitivity : Less than 2 mV change in output voltage per volt change in input voltage.

Output resistance : 50 Ω

Sensor Material : A380 aluminum

System Length : 5 or 7 metres including extension cable

Contact Now

Bently Nevada 3300 NSv Proximity Probe 330901 330905

The 3300 XL NSv Proximitor Sensor has similar features to those found in the 3300 XL 8 mm Proximitor Sensor. Its thin design allows the user

to mount it in either a high-density DIN-rail installation or a more traditional panel mount configuration. Improved RFI/EMI immunity allows the 3300 XL NSv Proximitor Sensor to achieve European CE mark approvals without any special mounting considerations. This RFI immunity also prevents nearby high frequency radio signals from adversely affecting the transducer system. SpringLoc terminal strips on the Proximitor Sensor require no special installation tools and facilitate faster, highly robust field wiring connections.

Ordering Information

3300 NSv Proximity Probes,Standard

Part Number-AA-BB-CC-DD-EE

330901 3300 NSv Probe, 1/4-28 UNF thread, without armor.

330902 3300 NSv Probe, 1/4-28 UNF thread, with armor.

330908 3300 NSv Probe, 3/8-24 UNF thread, without armor.

330909 3300 NSv Probe, 3/8-24 UNF thread, with armor.

A:Unthreaded Length Option

Order in increments of 0.1 in

Length configurations

Minimum length: 0 in

Maximum length: 9.2 in

Example: 04 = 0.4 in

B: Case Length Option

Order in increments of 0.1 in

Minimum length: 0.8 in

Maximum length: 9.9 in

Example: 35 = 3.5 in

C: Total Length Option

05 0.5 metre (1.67 feet)

10 1.0 metre (3.25 feet)

50 5.0 metres (16.4 feet)

70 7.0 metres (23 feet)

D: Connector Option

01 Miniature coaxial ClickLoc connector with connector protector, standard cable

02 Miniature coaxial ClickLoc connector, standard cable

11 Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable

12 Miniature coaxial ClickLoc connector, FluidLoc cable

E: Agency Approval Option

00 Not required

05 Multiple Approvals (CSA NRTL/C and BASEEFA/CENELEC, which includes CSA Division 2)

3300 NSv Probes, Metric

Part Number-AA-BB-CC-DD-EE

330903 3300 NSv Probe, M8 x 1 thread,without armor.

330904 3300 NSv Probe, M8 x 1 thread,with armor.

330905 3300 NSv Probe, M10 x 1 thread,without armor.

330910 3300 NSv Probe, M10 x 1 thread,with armor.

A: Unthreaded Length Option

Order in increments of 10 mm

Minimum length: 0 mm

Maximum length: 230 mm

Example 06 = 60 mm

B: Case Length Option

Order in increments of 10 mm

Minimum length: 20 mm

Maximum length: 250 mm

Example: 25 = 250 mm

C: Total Length Option

05 0.5 metre (1.67 feet)

10 1.0 metre (3.25 feet)

50 5.0 metres (16.4 feet)

70 7.0 metres (23 feet)

D: Connector Option

01 Miniature coaxial ClickLoc connector with connector protector, standard cable

02 Miniature coaxial ClickLoc connector, standard cable

11 Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable

12 Miniature coaxial ClickLoc connector attached, FluidLoc cable

E: Agency Approval Option

00 Not required

05 Multiple Approvals (CSA NRTL/C and BASEEFA/CENELEC, which includes CSA Division 2)
