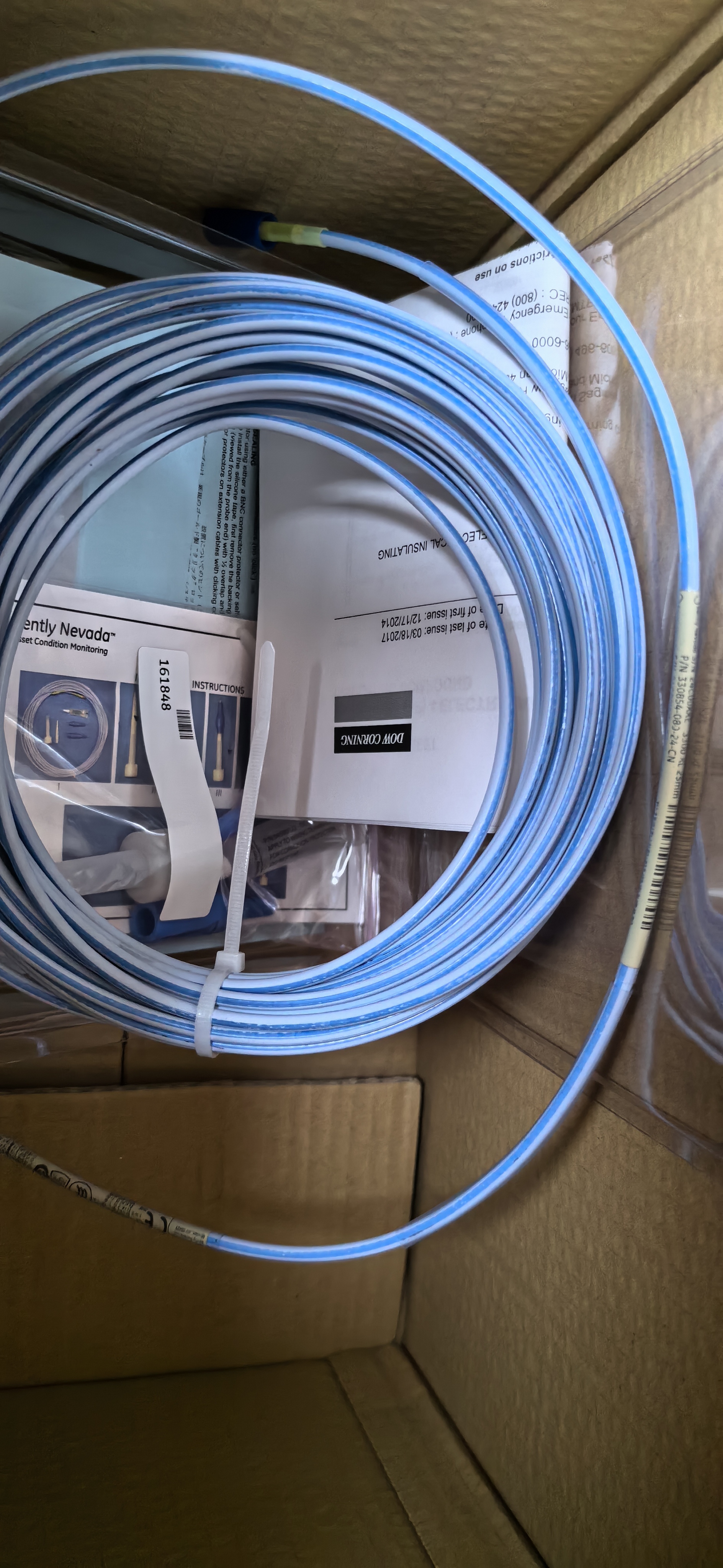

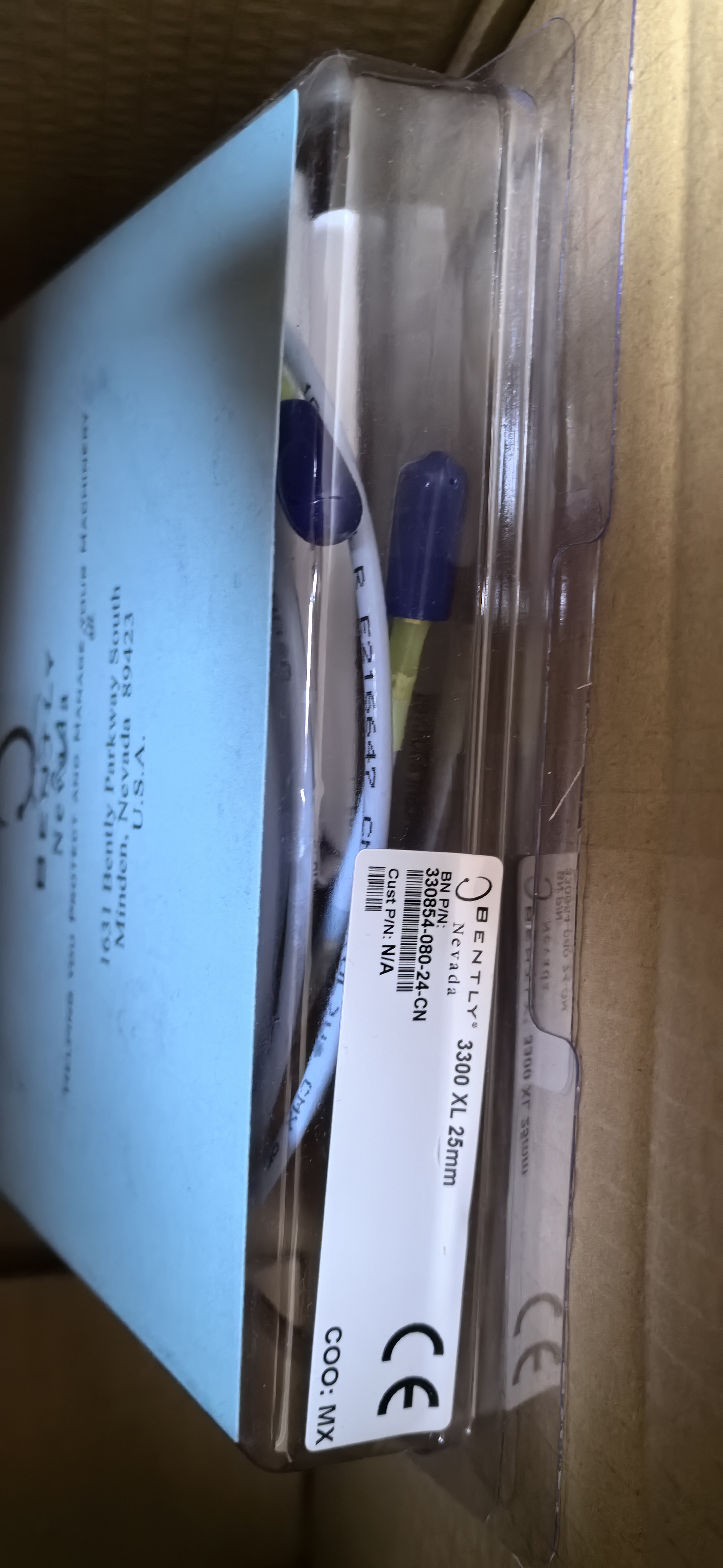

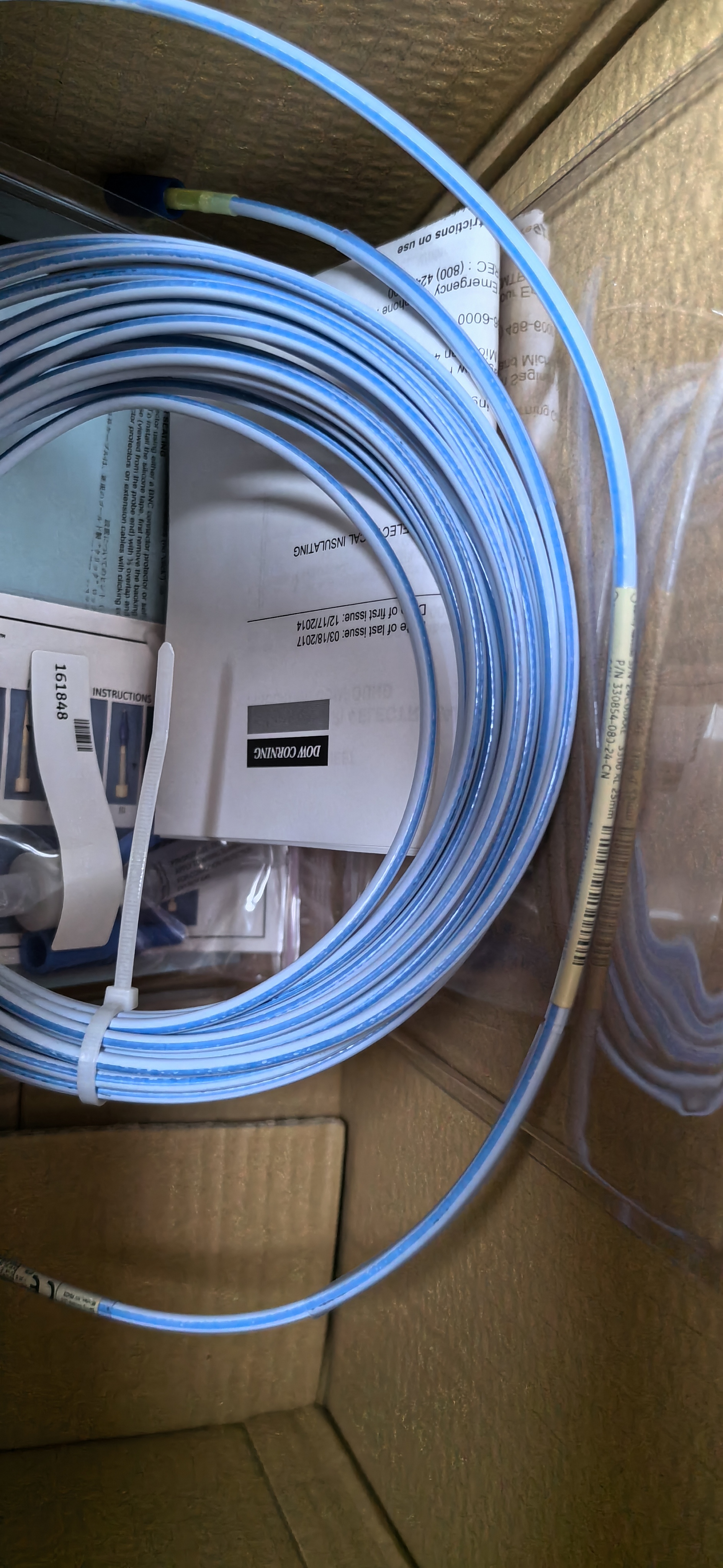

Bently Nevada 3300 XL 25 mm Extension Cable 330854 Beryllium Copper Connector

Name: Bently Nevada 3300 XL 25 mm Extension Cable 330854 Beryllium Copper Connector
Brand: Bently Nevada
Price: 1 USD

Buy cheap Bently Nevada 3300 XL 25 mm Extension Cable 330854 Beryllium Copper Connector product

Brand Name : Bently Nevada

Model Number : 330854-080-24-CN

Certification : CE

Place of Origin : USA

MOQ : 1pc

Price : negotiable

Payment Terms : T/T

Supply Ability : 100pcs per month

Delivery Time : 12-16weeks

Packaging Details : standard carton packing

Material : 75 Ω triaxial, perfluoroalkoxyethylene (PFA) insulated FluidLoc cable.

System Length : 5 or 9 extension metres cable including

Probe and Extension Cable Armor (optional) : Flexible AISI 302 SST with PFA outer jacket.

Tensile Strength (maximum rated) : 330 N (75 pounds) probe case to probe lead. 270 N (60 pounds) at probe lead to extension cable connectors

Connector material : Gold-plated brass and gold-plated beryllium copper

Weight : Extension Cable:45 g/m (0.5 oz/ft);Armored Extension Cable:140 g/m (1.5 oz/ft)

Contact Now

Bently Nevada 3300 XL 25 mm Extension Cable 330854

The 3300 XL 25 mm probe is designed for maximum survivability in the harshest steam turbine DE environments. It can continually operate and maintain its accuracy in high temperatures up to 200 °C (392 °F), and can withstand intermittent high temperatures up to 250 °C (482 °F). The 25 mm probe has both a front and rear seal which, combined with the FluidLoc cable (standard on all 25 mm probes), prevents moisture from entering the probe tip. Special high-temperature ClickLoc connectors are also standard on the probe and extension cable. Each probe and cable are provided with connector protectors and a disposable connector protector installation tool to ensure that the connectors remain free of contamination. The ClickLoc connector on the probe lead has a removable collar that facilitates routing the cable through tight clearances.

The 3300 XL 25 mm probe is available in many probe case styles, including 1¼-12 or 1½-12 English threads, M30x2 or M39x1.5 metric threads, or side or rear exit probes with a 1.06 or 1.50 in diameter smooth probe case.

Additionally, threaded 3300 XL 25 mm probe cases come standard with a locknut with predrilled safety wire holes.

Ordering Information

3300 XL 25 mm Extension Cable

330854-AAA-BB-CC

A: Cable Length Option

0 4 0 4.0 metres (13.1 feet)

0 8 0 8.0 metres (26.2 feet)

B: Armor and Cable Option

2 4 High Temperature FluidLoc cable

2 5 Armored High Temperature FluidLoc cable

C: Agency Approval Option

0 0 No Approvals

0 5 Multiple Approvals

Accessories and Related model

163235	03200006
148722-01	40113-02
330187	29660-01
02120015	136536-01
02173009	40180-02
138492-01	03839410
138493-01	03839420
04310310	330153-08
163356	330854-080-24-00
330854-080-24-CN	330854-040-24-00
330854-080-25-00	330854-040-25-CN
330854-040-24-CN	330854-080-25-CN
330854-080-25-CN
