Upgrade Your Safety Measures MTL5082 MTL Isolated Safety Barrier 10Ω to 400Ω Output Range

Brand Name : MTL

Model Number : MTL5082

Certification : CE

Place of Origin : India

MOQ : 1pc

Price : negotiable

Payment Terms : T/T

Supply Ability : 100pcs per month

Delivery Time : on request

Packaging Details : standard carton packing

Number of channels : One

Location of RTD : Zone 0, IIC, T4 hazardous area Div 1, Group A hazardous location

Resistance range : 10Ω to 400Ω

RTD excitation current : 200µA nominal

Output configuration : 2, 3 or 4 wires (independent of mode selected for hazardous-area terminals

Output range : 10Ω to 400Ω (from a 100µA to 5mA source)

Contact Now

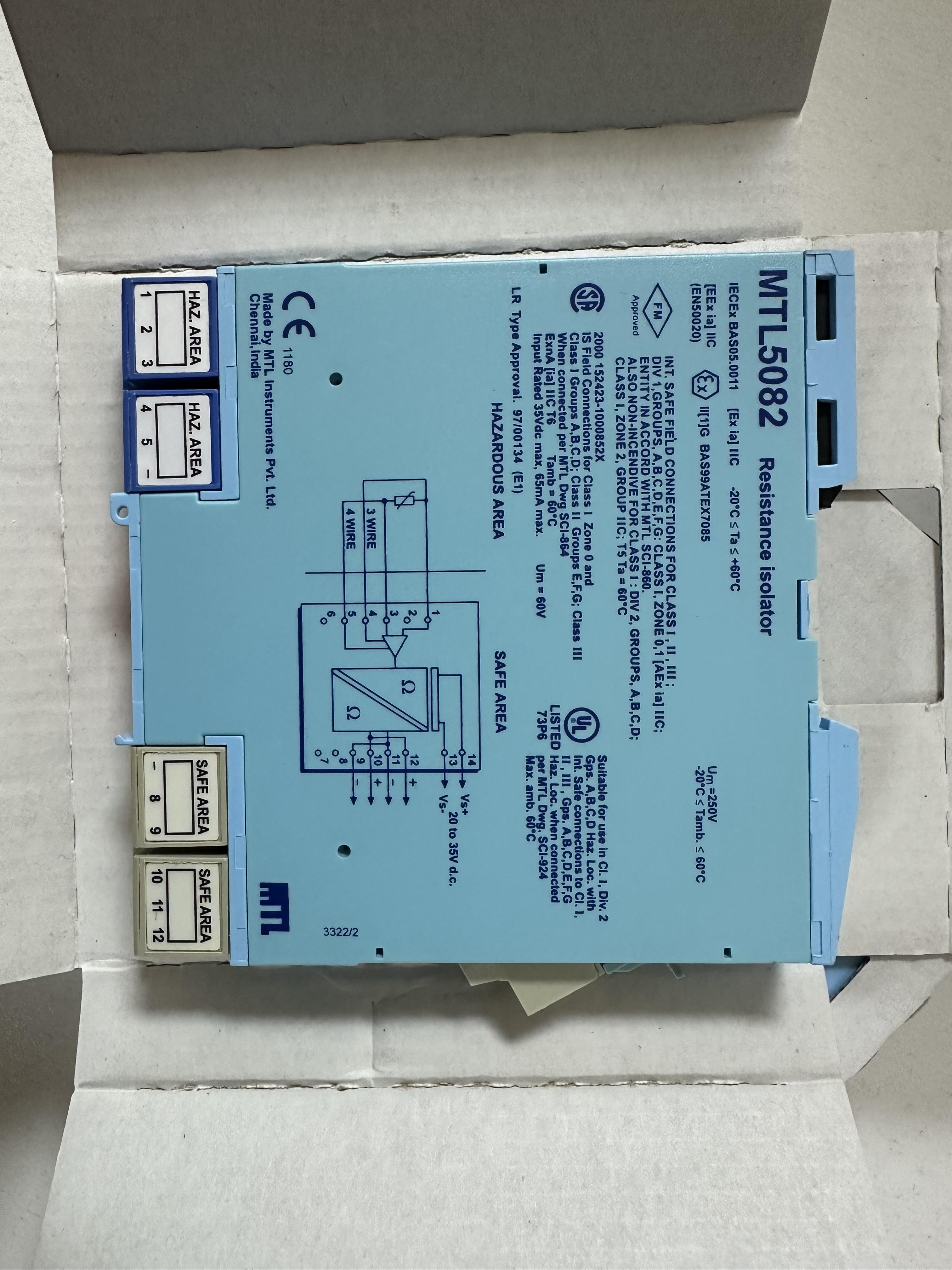

MTL Isolated Safety Barrier MTL5082

The MTL5082 connects to a 2-, 3-, or 4-wire resistance temperature device (RTD) or other resistance located in a hazardous area, isolates

it and repeats the resistance to a monitoring system in the safe area. The module is intended typically (but not exclusively) for use with Pt100

3-wire RTDs. Switches located on top of the module allow selection of 2-, 3-, or 4-wire RTD connection. The MTL5082 should be considered

as an alternative, non-configurable MTL5074, for use in RTD applications where a resistance input is preferred or needed instead of 4/20mA.

The design is notable for its ease of use and repeatability. The number of wires which can be connected on the safe-area side of the unit is independent of the number of wires which can be connected on the hazardous-area side. The module drives upscale in the case of open-circuit detection.
