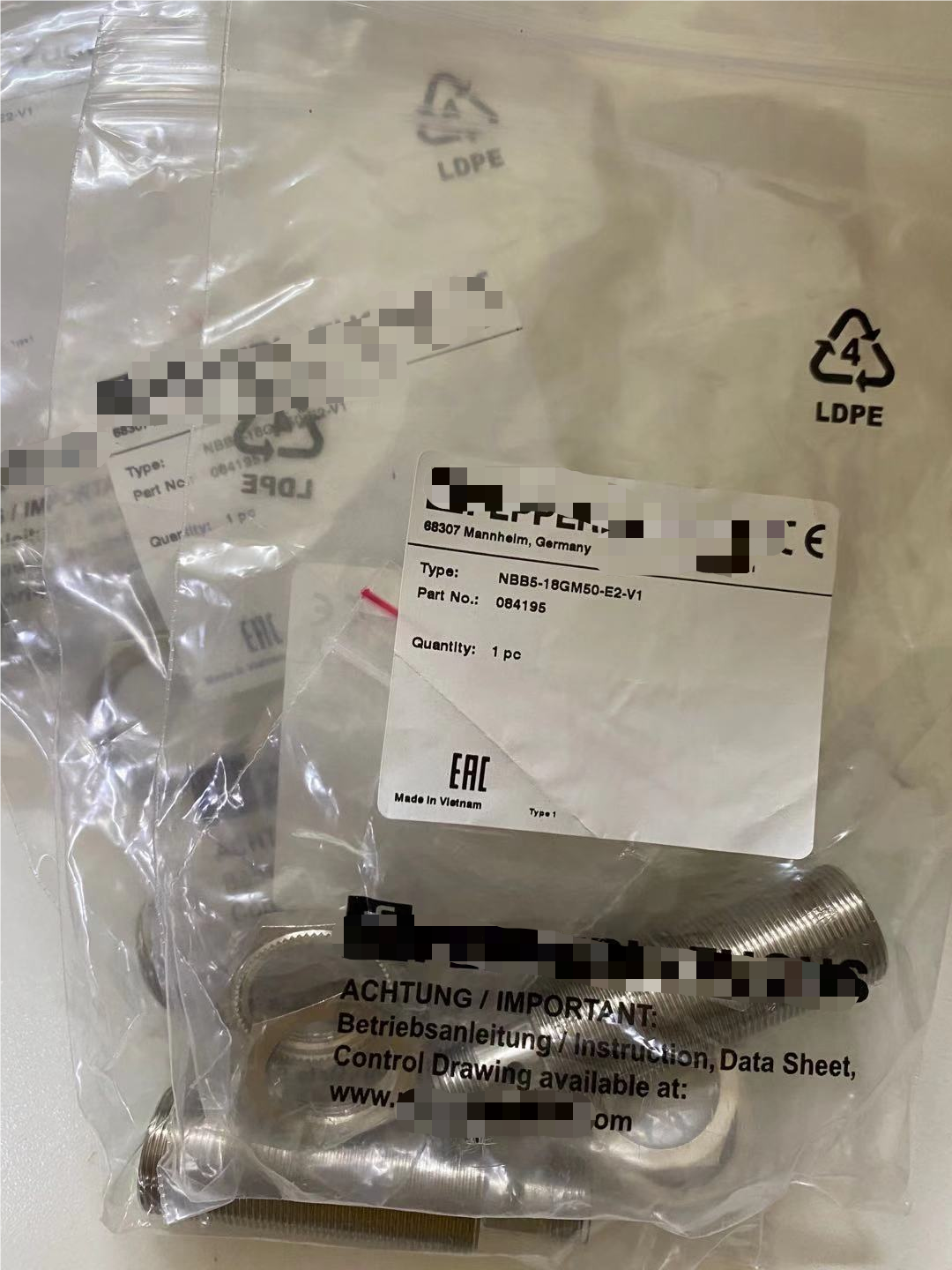

IP68 Od 18mm P+F Sensors NBB5-18GM50-E2-V1

Brand Name : P+F

Model Number : NBB5-18GM50-E2-V1

Certification : CE

Place of Origin : Germany

MOQ : 1 piece

Price : negotiable

Payment Terms : T/T

Supply Ability : 100pcs per month

Delivery Time : on request

Packaging Details : standard carton packing

Degree of protection : IP68

Ambient temperature : -40 ... 85 °C (-40 ... 185 °F)

Dimensions : Length 66 mm Diameter 18 mm

Switching function : Normally open (NO)

PWIS conformity : VDMA 24364-A1/B2/C1/T100°C-W

Standards : EN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012

Contact Now

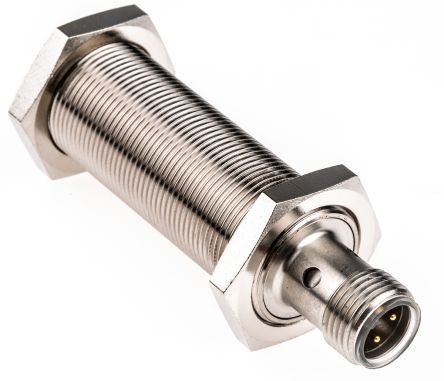

Inductive sensor NBB5-18GM50-E2-V1

Extended temperature range, Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Thread mold: M18, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: DC, Connection type: Connector plug, Housing material: brass , white bronze coated, Degree of protection: IP68, Threading: M12 x 1

Technical Data

General specifications
Switching function		Normally open (NO)
Output type		PNP
Rated operating distance		5 mm
Installation		flush
Output polarity		DC
Assured operating distance		0 ... 4.05 mm
Actuating element		mild steel, e. g. 1.0037, SR235JR (formerly St37-2) 18 mm x 18 mm x 1 mm
Reduction factor rAl		0.35
Reduction factor rCu		0.29
Reduction factor r304		0.73
Reduction factor rBrass		0.44
Output type		3-wire
Nominal ratings
Operating voltage		5 ... 36 V
Switching frequency		0 ... 1950 Hz
Hysteresis		typ. 5 %
Reverse polarity protection		reverse polarity protected
Short-circuit protection		pulsing
Voltage drop		≤ 1 V
Operating current		0 ... 200 mA
Off-state current		max. 20 µA
No-load supply current		≤ 10 mA
Time delay before availability		≤ 10 ms
Switching state indicator		Multihole-LED, yellow
Functional safety related parameters
MTTFd		1721 a
Mission Time (TM)		20 a
Diagnostic Coverage (DC)		0 %
Conformity
PWIS conformity		VDMA 24364-A1/B2/C1/T100°C-W
Compliance with standards and directives
Standard conformity
	Standards	EN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012
Approvals and certificates
Protection class		II
	Rated insulation voltage	36 V
	Rated impulse withstand voltage	500 V
UL approval		cULus Listed, General Purpose, Class 2 Power Source
CCC approval		CCC approval / marking not required for products rated ≤36 V
Marine approval		DNVGL TAA00003AK
Ambient conditions
Ambient temperature		-40 ... 85 °C (-40 ... 185 °F)
Storage temperature		-40 ... 85 °C (-40 ... 185 °F)
Mechanical specifications
Connection type		Connector plug
Housing material		brass , white bronze coated
Sensing face		PBT , green
Degree of protection		IP68
Connector
	Threading	M12 x 1
	Number of pins	3
Mass		61 g
Dimensions
	Length	66 mm
	Diameter	18 mm
Mounting		with nuts, M18
Tightening torque		0 ... 30 Nm
General information
Scope of delivery		2 self locking nuts in scope of delivery
